• Detail infomation

Hose Clamp CONN 6/12
6/12-6/12 230/50/55F
Technical Data :

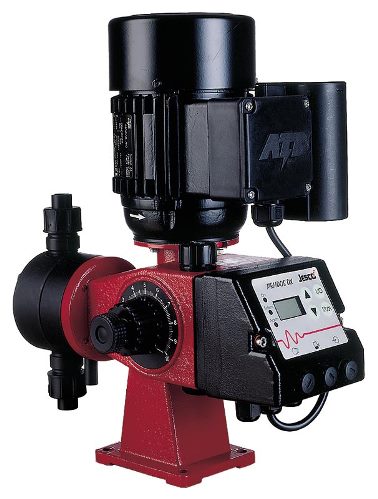

Diaphragm dosing pump
Flow rate : 15 /hr at 50Hz
Stroke length adjustment : Stroke length manually
Electronic control : Stroke frequency adjustable 0…95 stroke/min
At Max pressure 10 bar
Input signal : - closing contact
With pulse multiplication and division
In ratio : 1,2,4,8,16,32,64
0(4)…20 mA
Connection for supply tank level monitoring with low level monitoring
Driving motor : 230 V ,1~50Hz,0.05 kW IP55
Dosing Head : PVC , diaphragm PTFE coated
Check valve : double ball DN4 , PVC stainless stell , EPD<
Valve balls and seats in stainless steel
Match code : 0104B0015CMJA1AAAC1FC1F
Weight 8 KG
